Wall: How to Add Service Holes into Walls

 Post Reply Post Reply
administrator View Drop Down
Admin Group
Admin Group

Joined: 01 Jan 2011
Points: 406
Post Options Post Options   Thanks (0) Thanks(0)   Quote administrator Quote  Post ReplyReply Direct Link To This Post Topic: Wall: How to Add Service Holes into Walls
    Posted: 02 Mar 2020 at 6:26am
Step 1

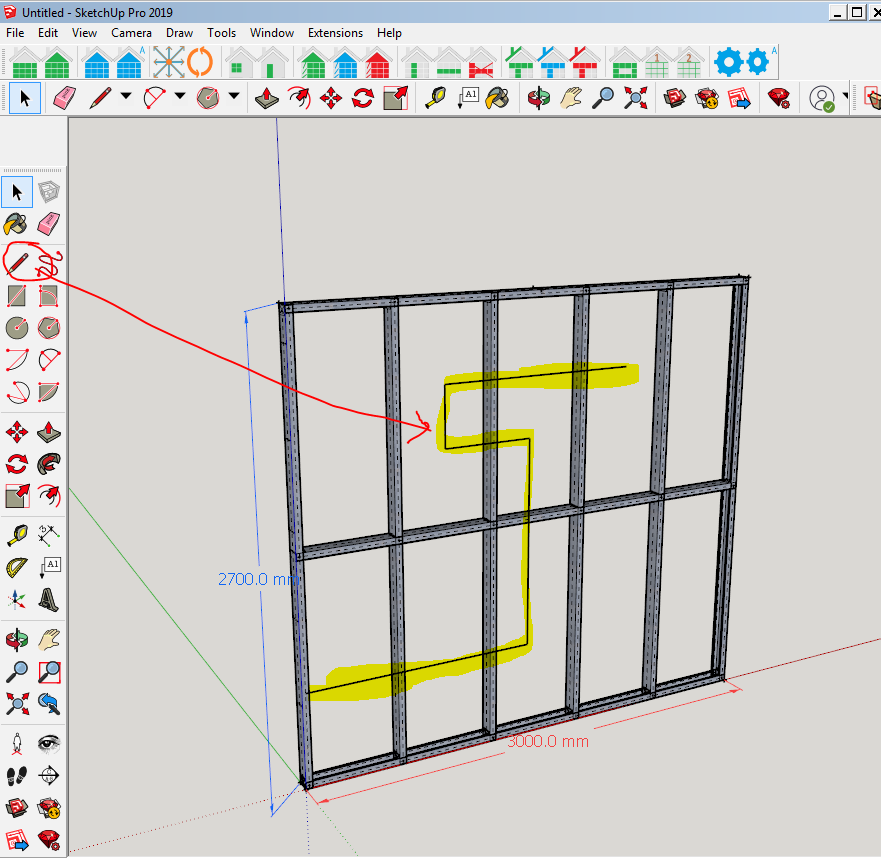

Draw Reference Lines using pencil tool across the flange. The will follow the path of your plumbing or conduit.

Step 2

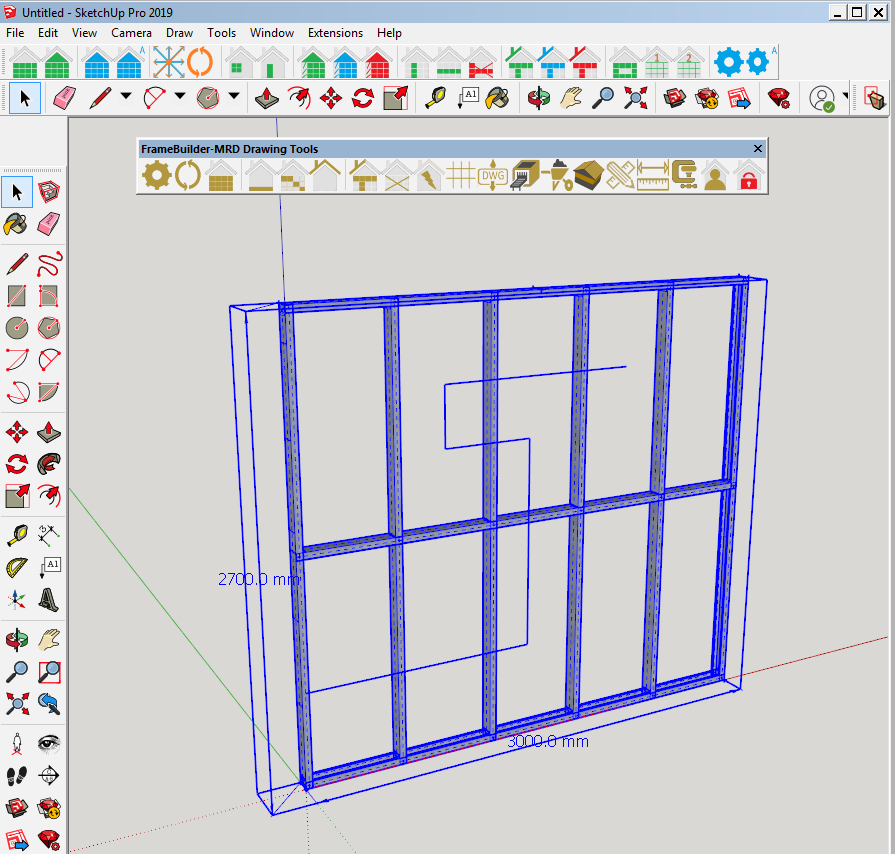

Select Lines and Wall

Step 3

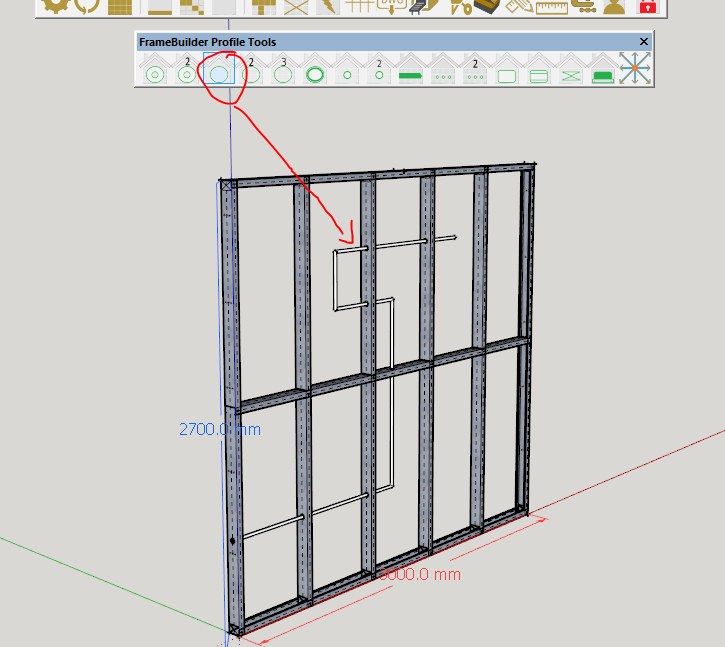

Open up the Profile Toolset. Select the tool you wish to punch such as service hole.

Edited by administrator - 23 Nov 2020 at 2:07am
