Wall: How to Add Pockets into a Wall Frame

 Post Reply Post Reply
Author
Message
administrator View Drop Down
Admin Group
Admin Group


Joined: 01 Jan 2011
Status: Offline
Points: 374
Post Options Post Options   Thanks (0) Thanks(0)   Quote administrator Quote  Post ReplyReply Direct Link To This Post Topic: Wall: How to Add Pockets into a Wall Frame
    Posted: 23 Nov 2020 at 1:18am
1: Select Wall
2: Open Wall Toolset

3: Select Pocket Tool Set

4: Add/Edit/Move Pocket

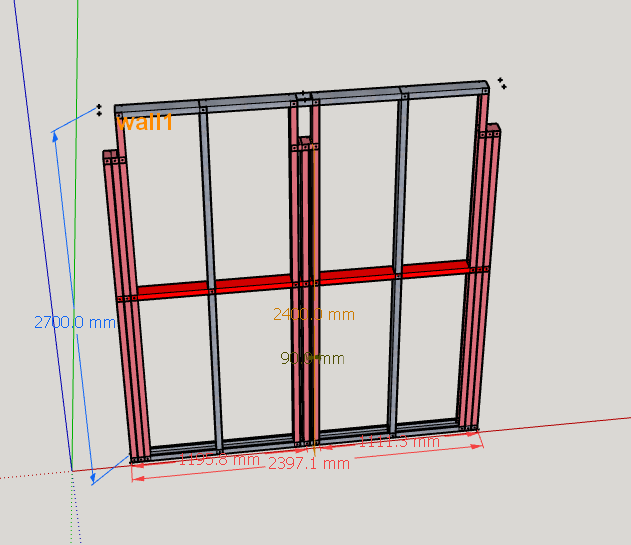

Examples:



Edited by administrator - 23 Nov 2020 at 2:02am
