Version 6.0.0 Release Notes

 Post Reply Post Reply
Author
Message
administrator View Drop Down
Admin Group
Admin Group


Joined: 01 Jan 2011
Points: 406
Post Options Post Options   Thanks (0) Thanks(0)   Quote administrator Quote  Post ReplyReply Direct Link To This Post Topic: Version 6.0.0 Release Notes
    Posted: 26 Jan 2023 at 9:13am
Global:

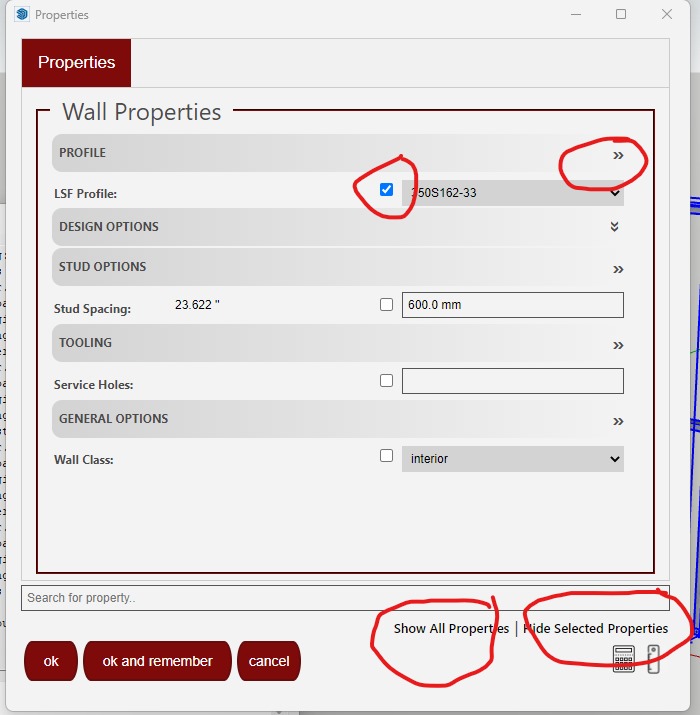

  • New option to customize properties windows to hide or minimize properties.

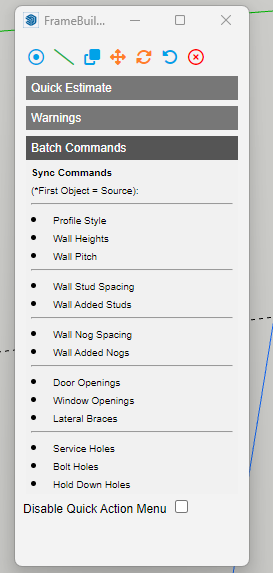

  • New Quick Menu with common functionality and batch commands. Batch commands will include sync commands to quickly synchronize properties from source component to multiple targets. This menu will automatically appear when you click on a component. There is an option to disable this menu and re-enable via global settings.
  • Implementation of new naming convention and renaming of subcomponents. For example, "stud" will be renamed to "Stud". "king_stud" renamed to "KingStud"
  • FrameCAD Import Update.
  • ScottsDale Import Update. Walls, Truss Panels, Roof Trusses.

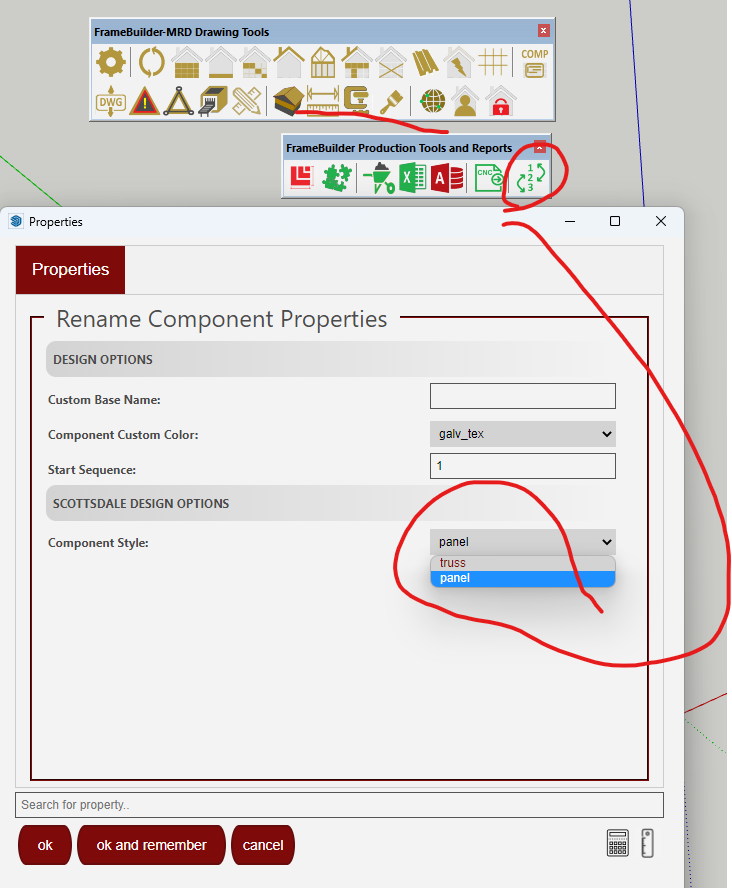

  •  New Option to Flag ScottsDale Truss or Panel found under renumbering tool

  • FrameCAD auto tooling option for custom components.
  • New TS Special Wall Frame Project, Beta release.

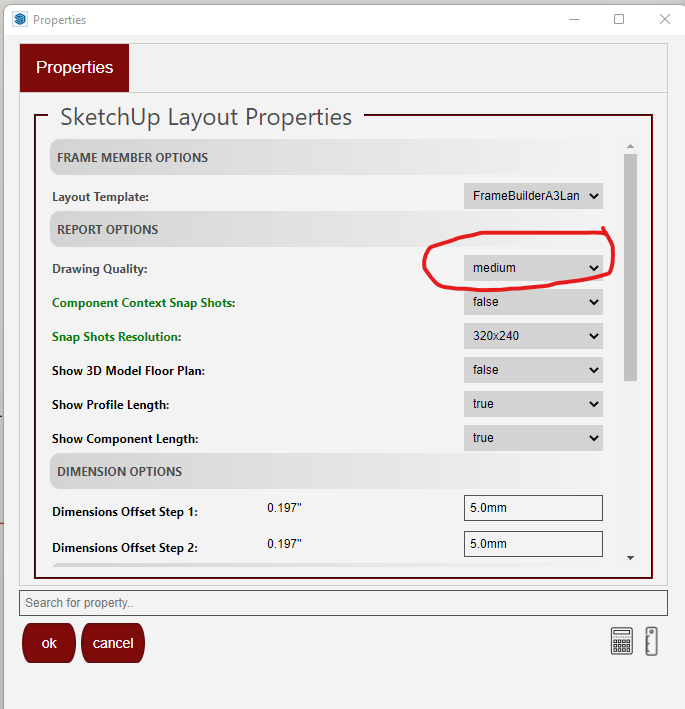

  • New Panel Drawing Quality Option High, medium, low(current format)

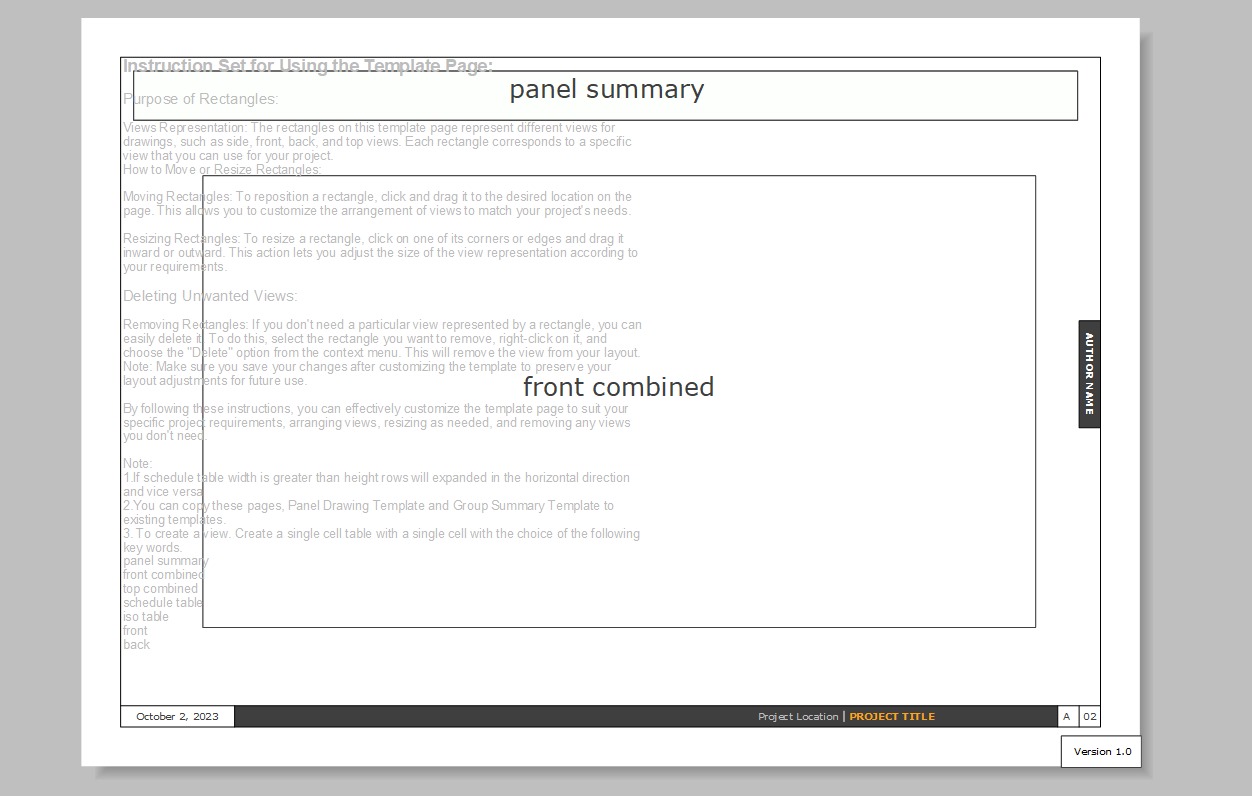

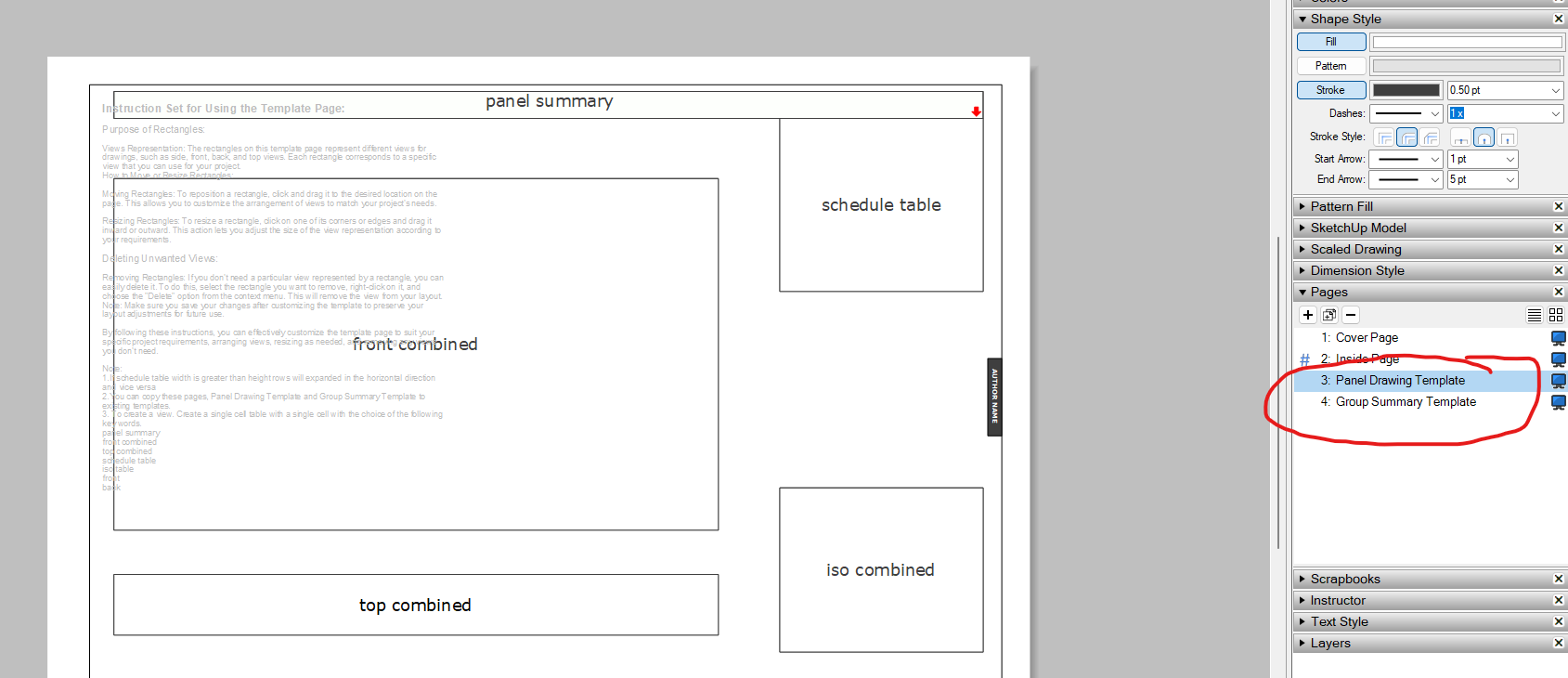

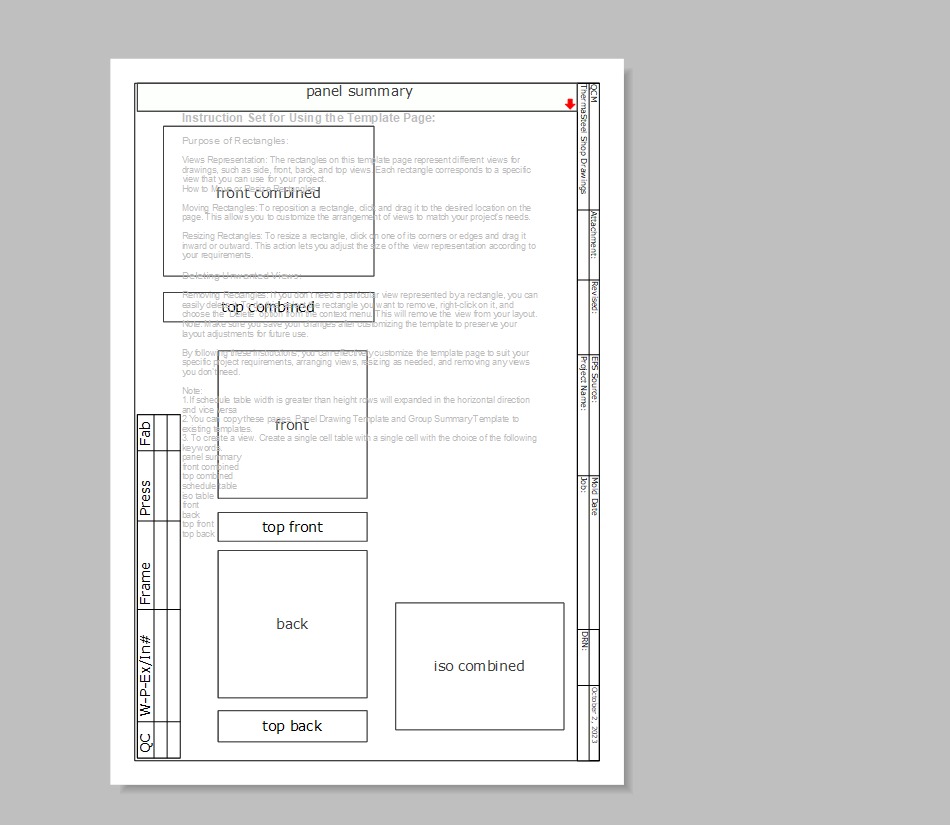

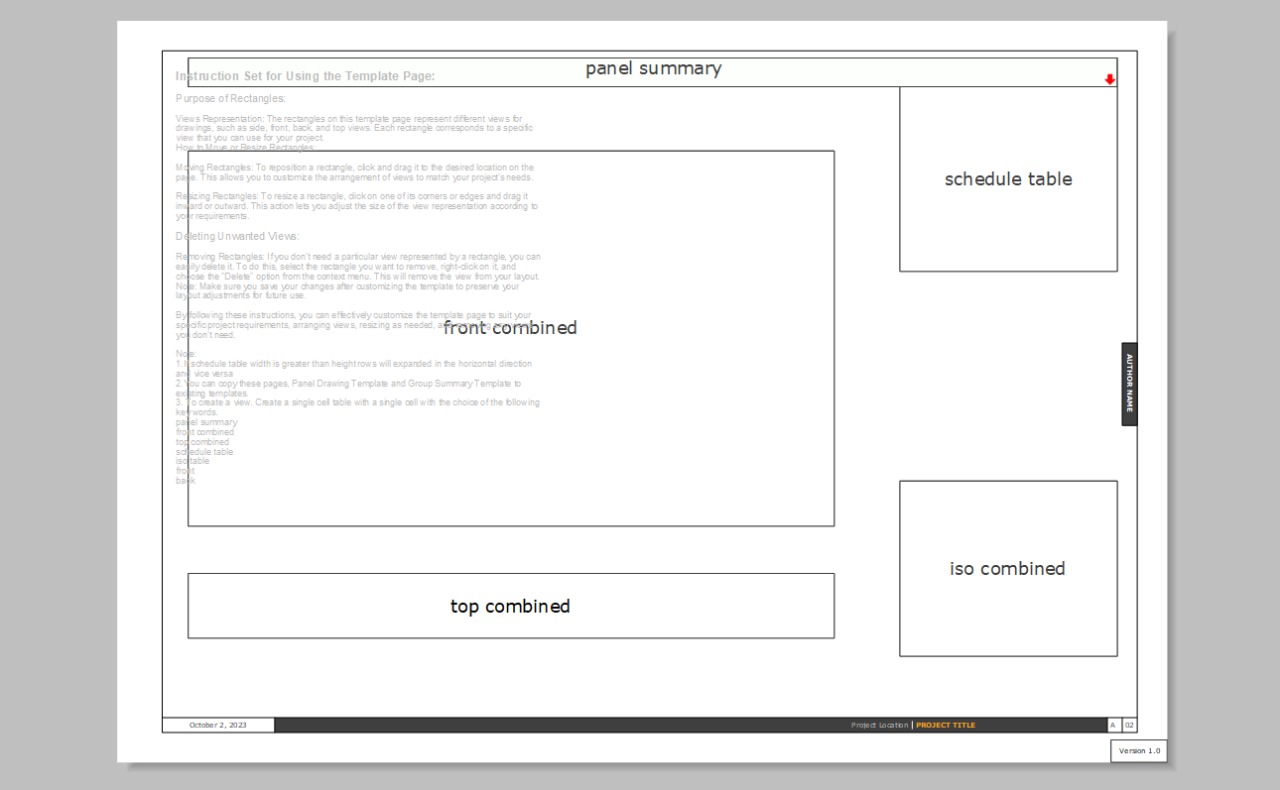

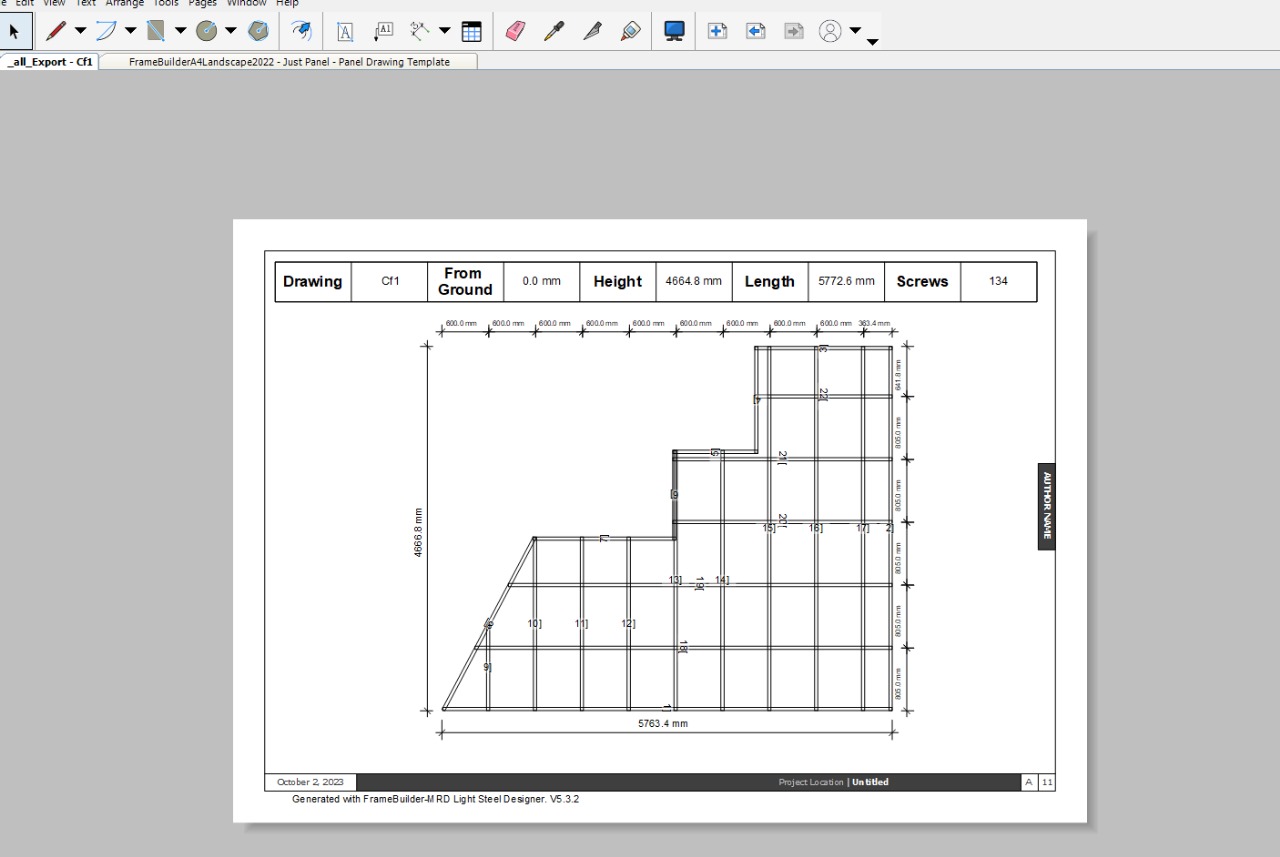

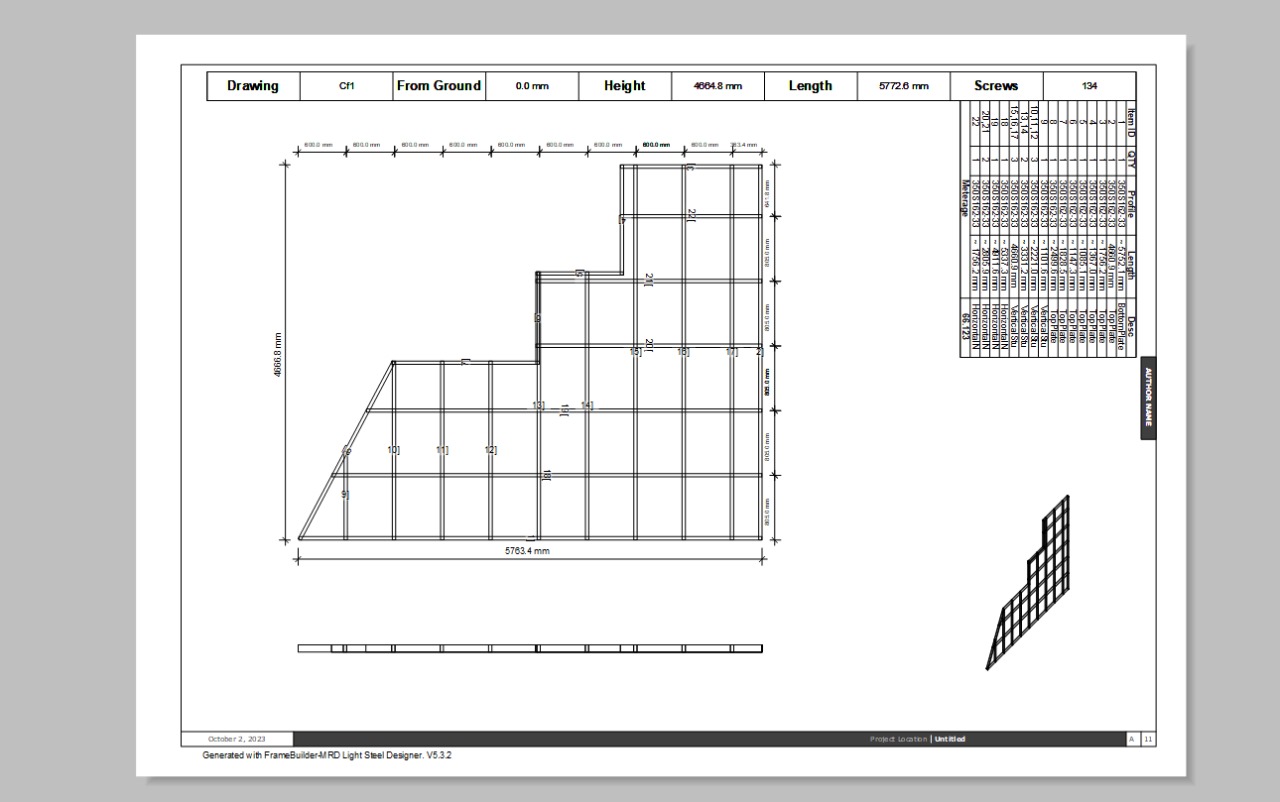

  • Important *Panel template page will be introducted that will allow the user the resize and move snaps for panel drawings
  • New Option introduced that will automatically update your layout templates with the template pages.






  • It will give users greater control. You could create special templates just for panel drawings or for wide views for trusses. You could position according to page size and exclude data you don't need for certain projects.
Free Tool:
  • Bug fix: Undo on manual tooling

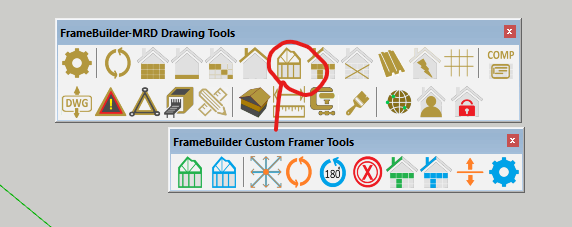

*New Custom Framer Module
  • A generic set of tools that will allow a user to draw any custom frame in 3D space, at any angle, with any number of top plates.

Roof
  • Bug Fix. Roof overhang web diagonals not appearing in mono and gable trusses.
  • Staggered Horizontal Option added to roof frame components.
Metal Cladding
  • Bug Fixes when loading new user profiles and Cladding module failing after.
Custom Frame Module
  • Staggered Horizontal Option added.
Wall
  • New linear sequence options added for numbering order. When selected it will label/number components along start and end of the wall.
  • Bug fix for staggered nogging not appearing when opening is inserted


Edited by administrator - 21 May 2024 at 10:57am
