Steps on how to add an opening.

 Post Reply Post Reply
Mo78 View Drop Down

Joined: 03 Jun 2018
Status: Offline
Points: 30
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mo78 Quote  Post ReplyReply Direct Link To This Post Topic: Steps on how to add an opening.
    Posted: 05 Jul 2018 at 2:19pm

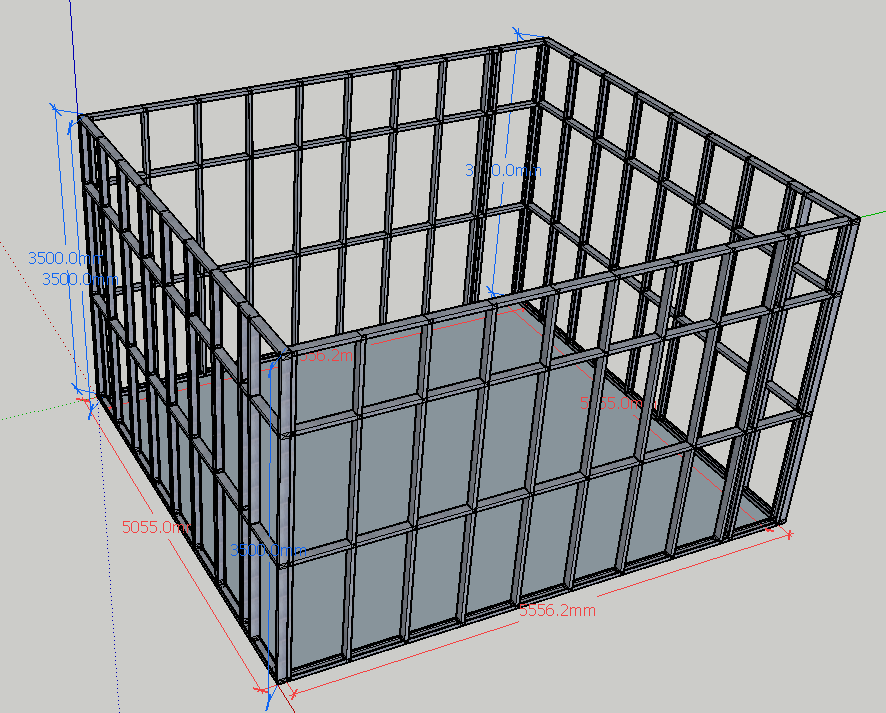

Step 1:

Click the “select tool” icon which is on the left hand corner of the page.

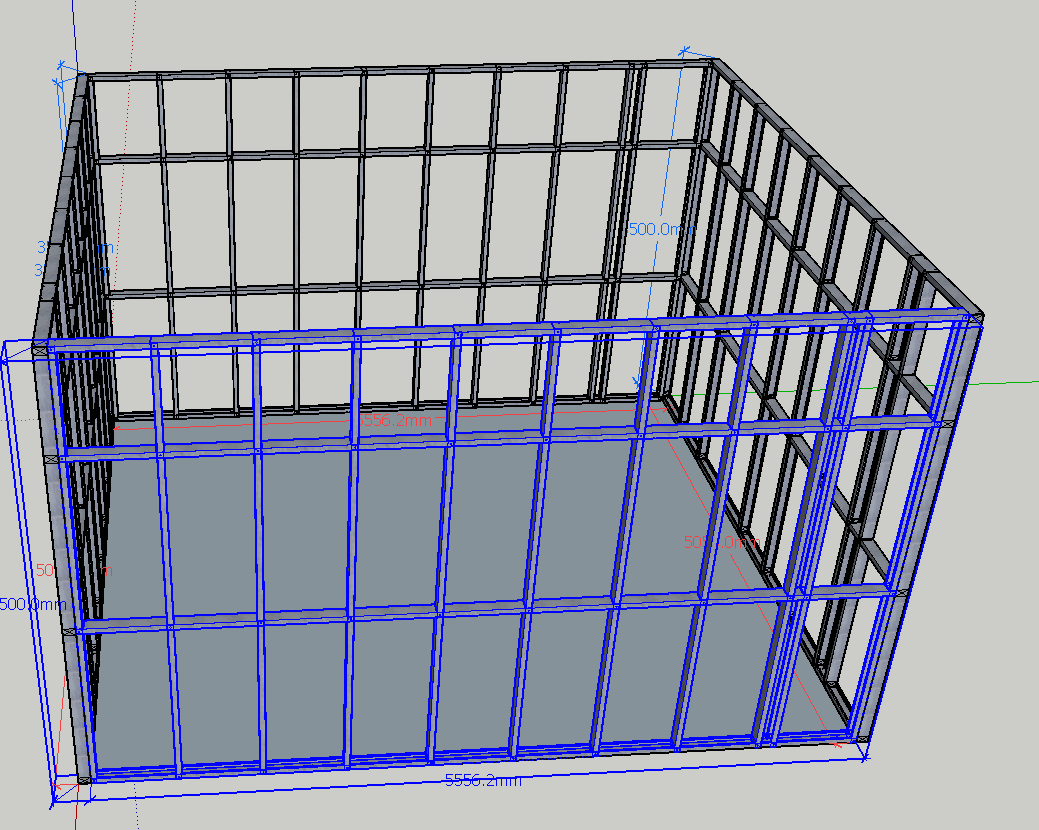

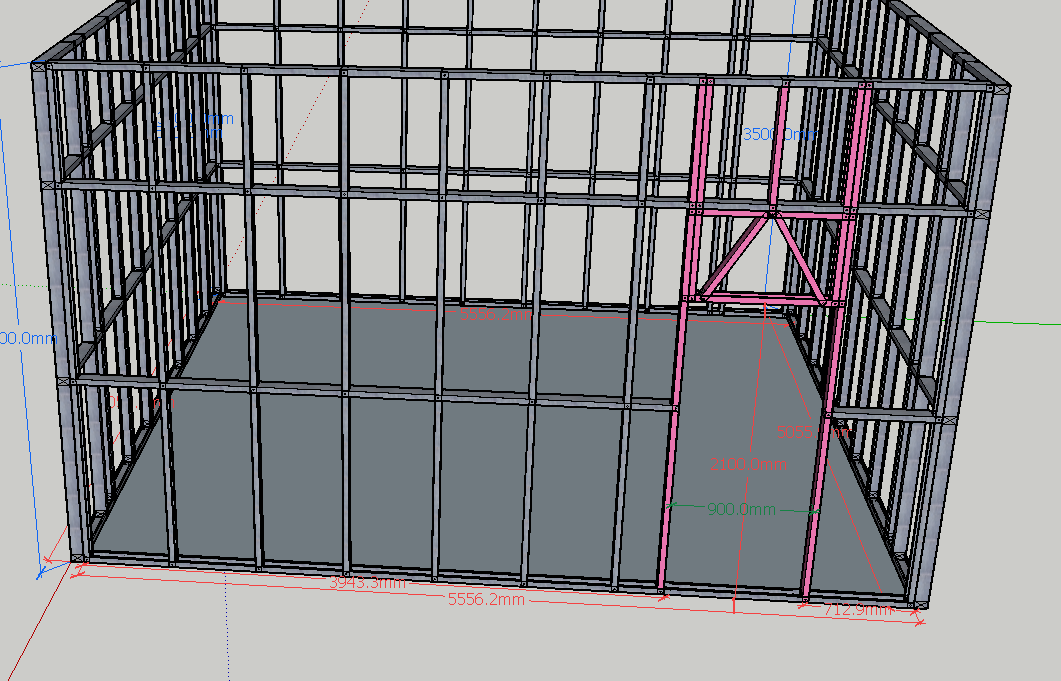

Choose the wall on which you want to insert a window or a door.

With the select tool select the wall you want to insert an opening.
step 2:

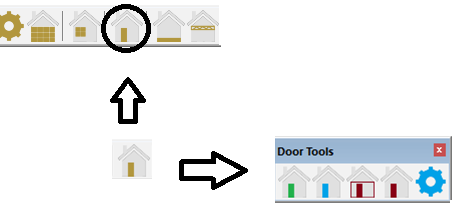

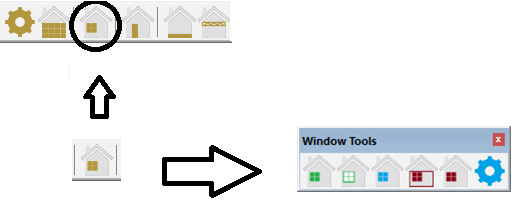

Click on the window icon to add a window or Click on the door icon to add a door.

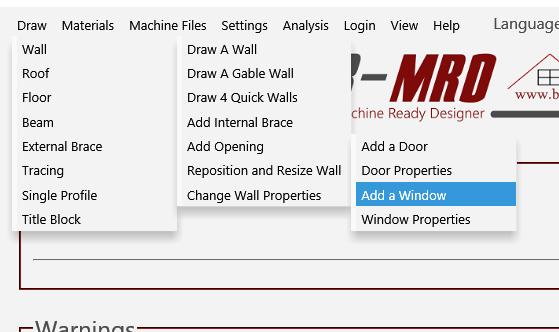

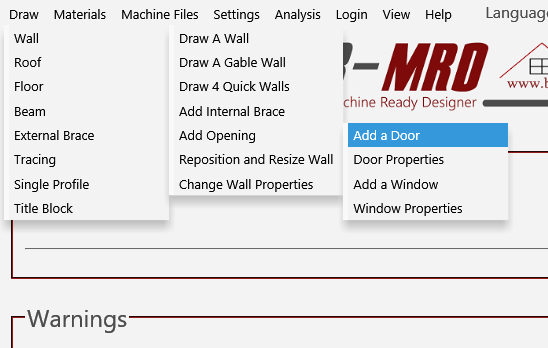

Go to Draw>Wall>Add Opening>Add a Door.

Go to Draw>Wall>Add Opening>Add a Window.

step 3:

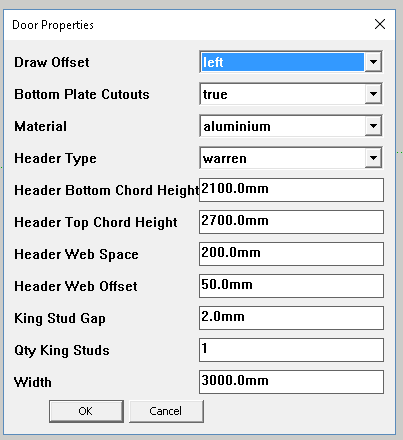

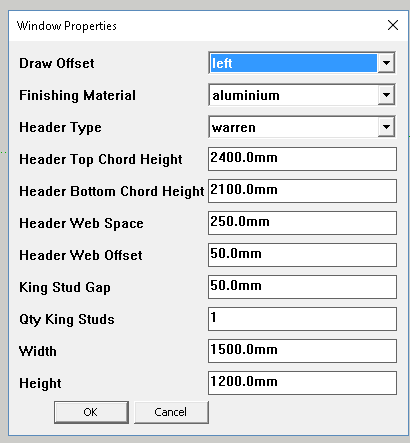

This properties menu’s will pop up so select the correct width etc.

step 4:

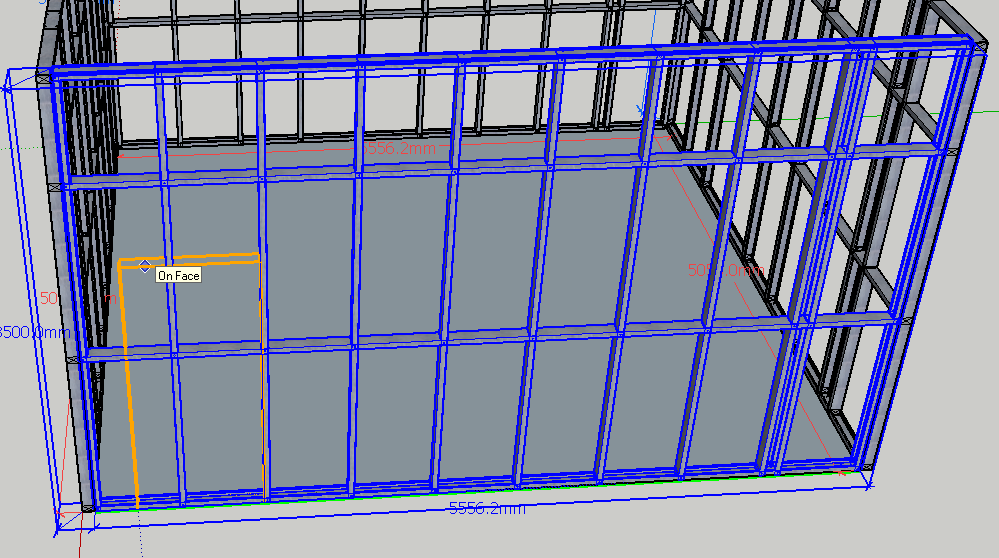

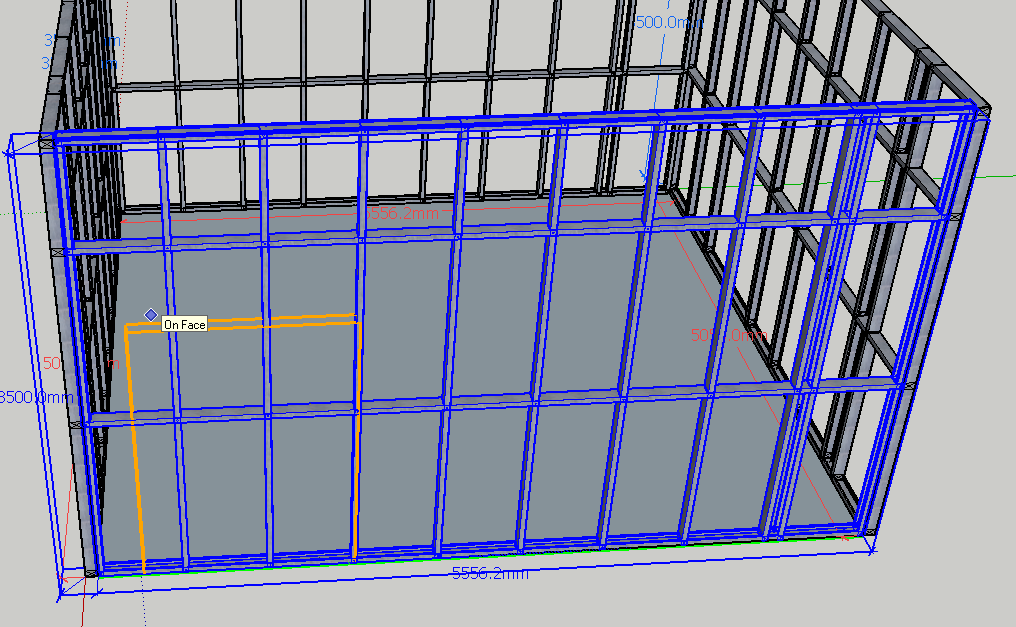

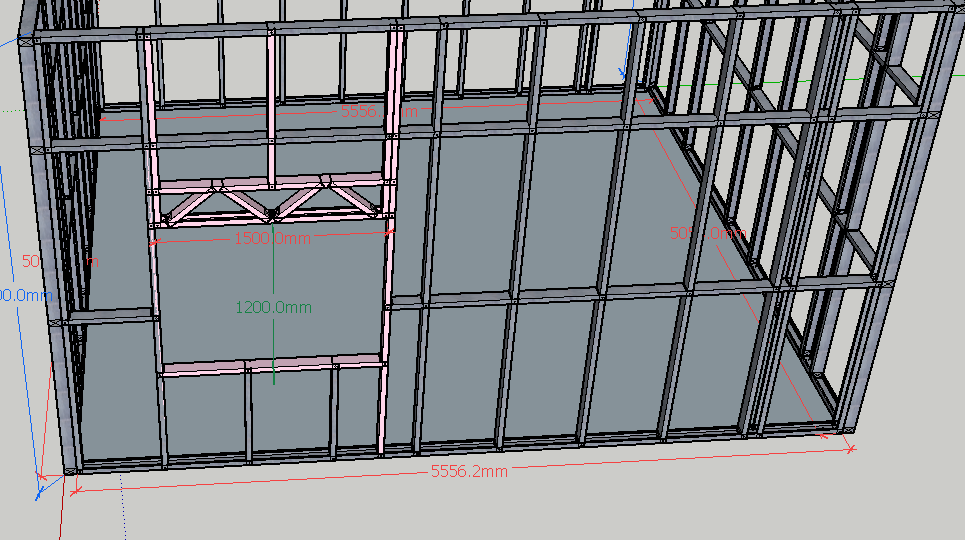

Select the place where you want to place a window or door.

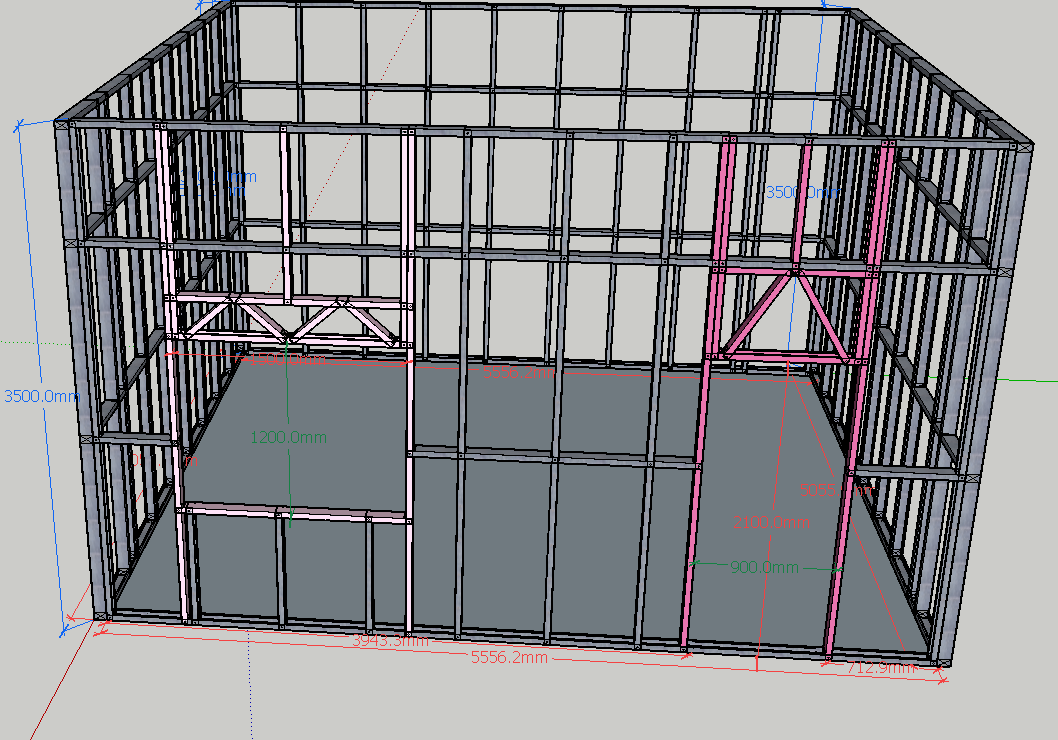

final result:
