Wall: How to Enable or Add Profiles

 Post Reply Post Reply
administrator View Drop Down
Admin Group
Admin Group

Joined: 01 Jan 2011
Points: 406
Post Options Post Options   Thanks (0) Thanks(0)   Quote administrator Quote  Post ReplyReply Direct Link To This Post Topic: Wall: How to Enable or Add Profiles
    Posted: 11 Feb 2020 at 6:09am

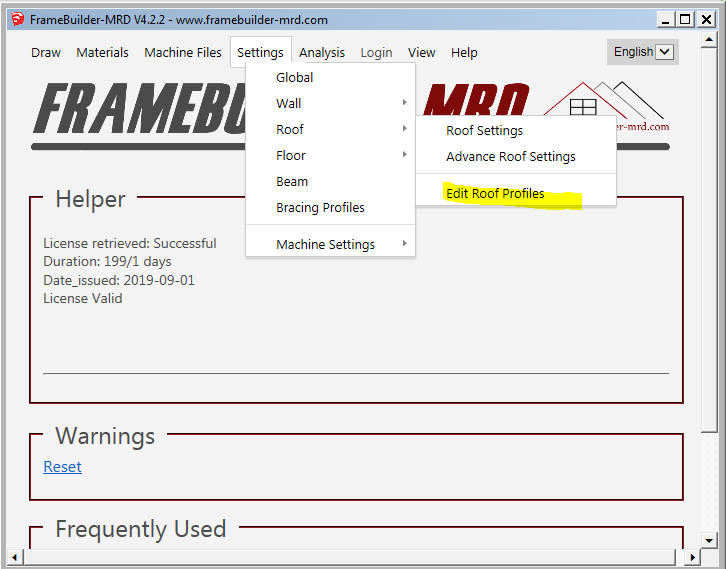

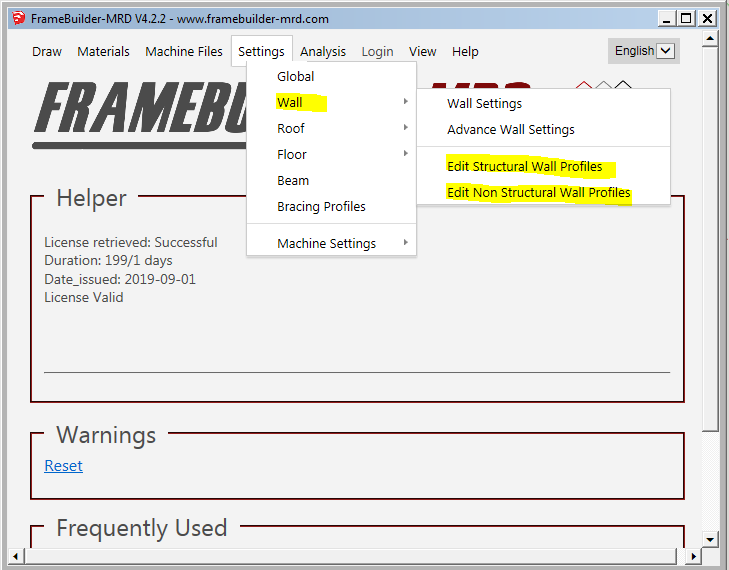

Add, remove or enable profiles by selecting the following menu option

Note: Profiles must be updated for each of the modules.

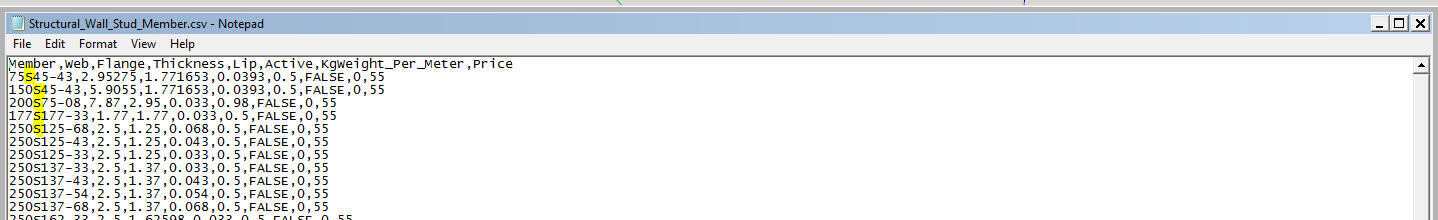

Editing the Profile List File
Note the following:
  • Make a backup of this file.
  • The first field is the name of the profile.
  • Maintain the format of the first field and the delimiters/separators. The "S" and "-" must be maintained. Correct Format Example 76S46-43 can be changed to 77S46-43.  An incorrect format 77A4643
  • All values are in inches.
  • Weight per length ratio and Price per Length must be set correctly for accurate reporting.
  • Enabled Profiles from All Modules Profiles List will also be available in the Free Tool Module.

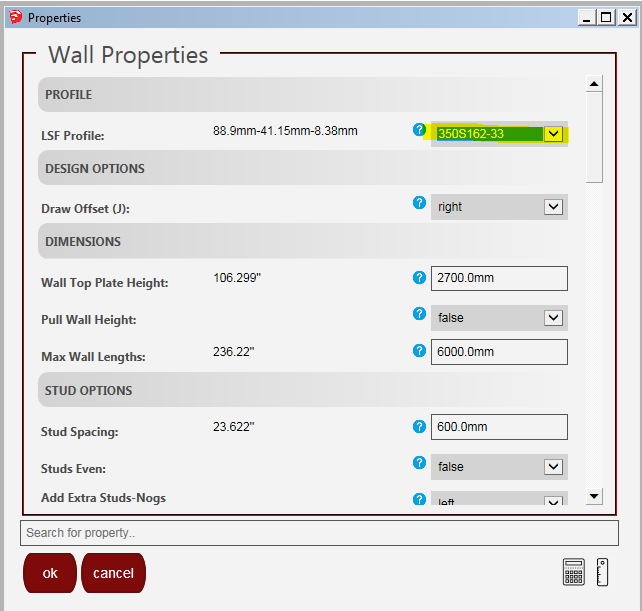

Restart Sketchup and Verify if your Profile is now in the list.

Edited by administrator - 23 Nov 2020 at 2:09am
