Steps on how to Draw a Roof.

 Post Reply Post Reply
Mo78 View Drop Down

Joined: 04 Jun 2018
Points: 28
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mo78 Quote  Post ReplyReply Direct Link To This Post Topic: Steps on how to Draw a Roof.
    Posted: 24 Jun 2018 at 12:23am
Step 1:

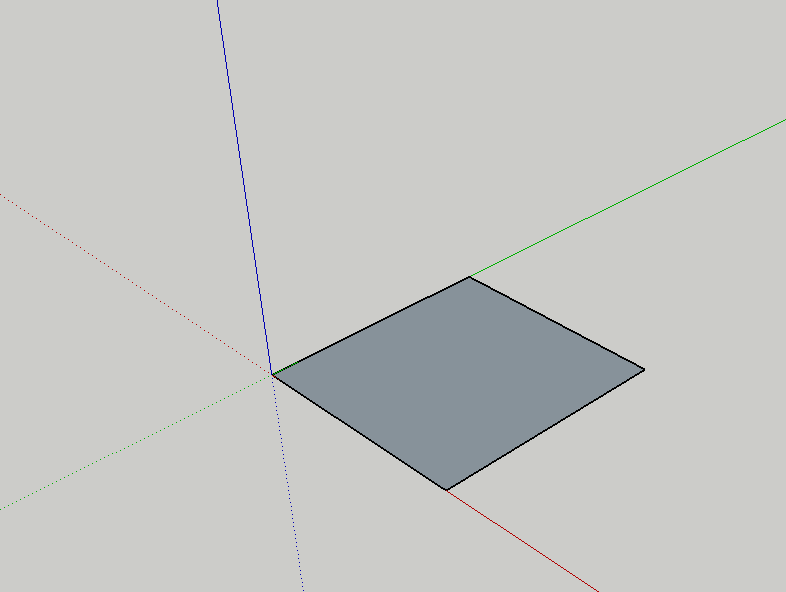

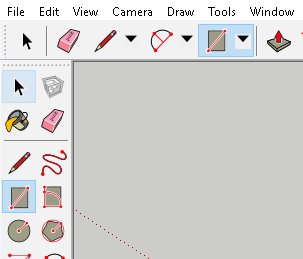

Create a floor plan or guide to follow by using the shape tool on sketch up.
Insert the dimensions according to the roof specifications.

Step 2:

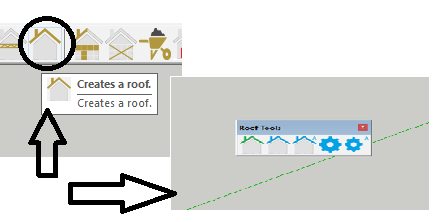

Click the roof icon as shown above (the tool bar on the left will pop up)

Click the Roof icon.

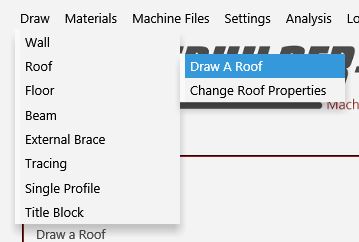

On the menu go to Draw>Roof>Draw A Roof.

Step 3:

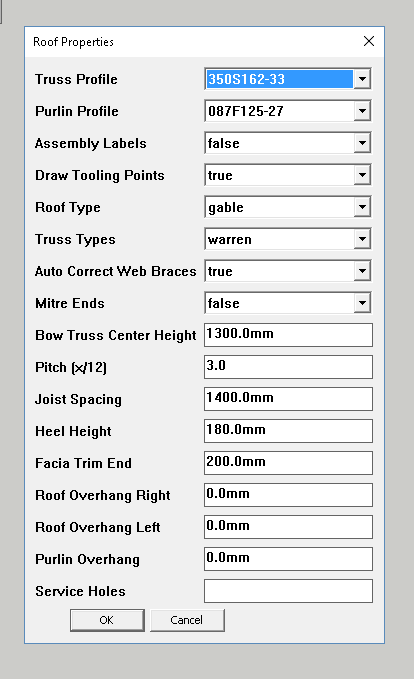

Roof Properties menu will pop up, choose and change around the settings to your specifications .

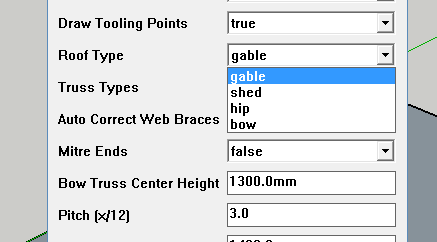

Choose between roof types

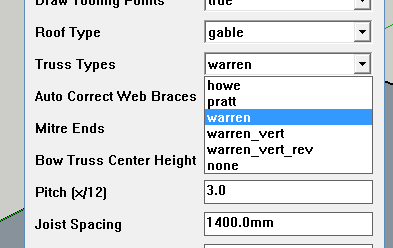

choose between truss types

Step 4:

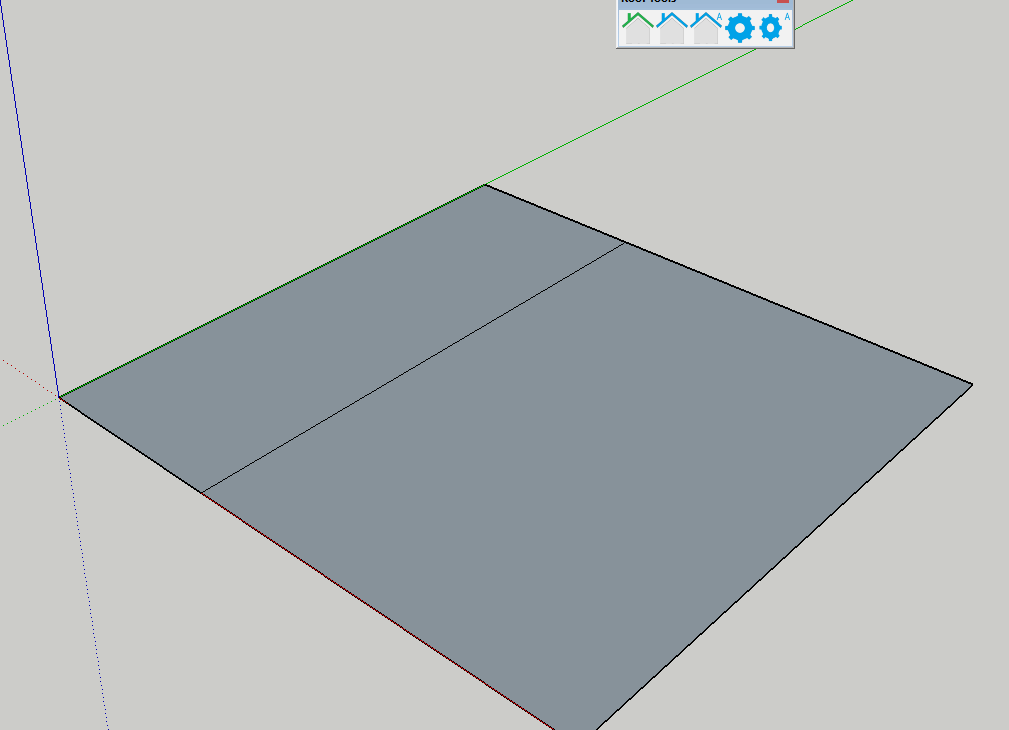

Click with the cursor on the first corner then the second and then all the way to the end

                    The Roof Will be Drawn
                               Gable Roof

                                 Shed Roof

                                Hip Roof

                               Bow Roof

                                                   Bow string roof coming soon on Framebuilder-MRD.

Edited by muhammed78 - 23 Jun 2018 at 6:27pm
