Steps on how to draw a beam

 Post Reply Post Reply
Mo78 View Drop Down

Joined: 04 Jun 2018
Points: 28
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mo78 Quote  Post ReplyReply Direct Link To This Post Topic: Steps on how to draw a beam
    Posted: 17 Aug 2018 at 1:41am
Step 1

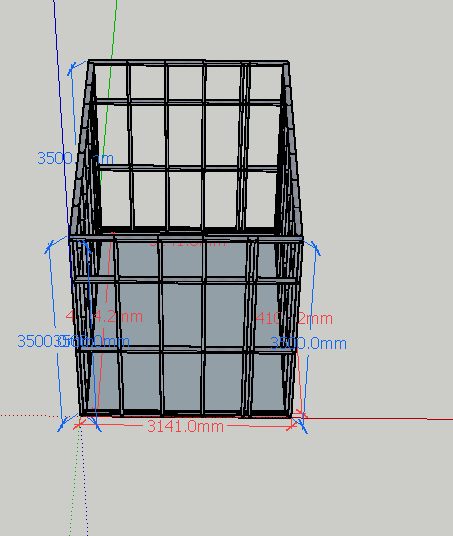

Create a wall or walls for a beam

Step 2

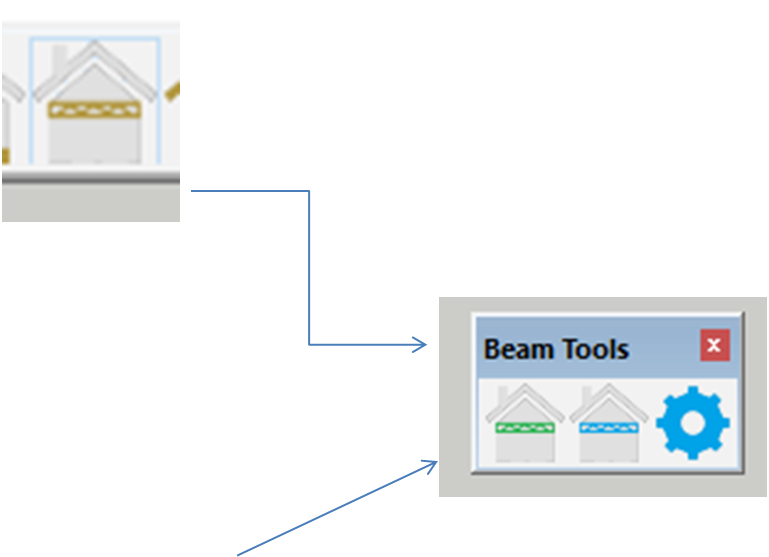

Click the beam icon then click the beam icon on the tool bar that will pop up

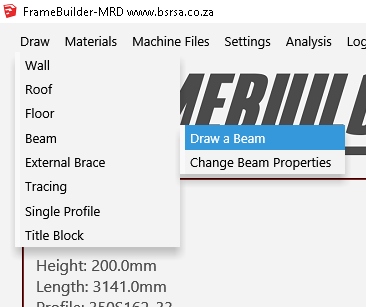

Click Draw>Beam>Draw a Beam

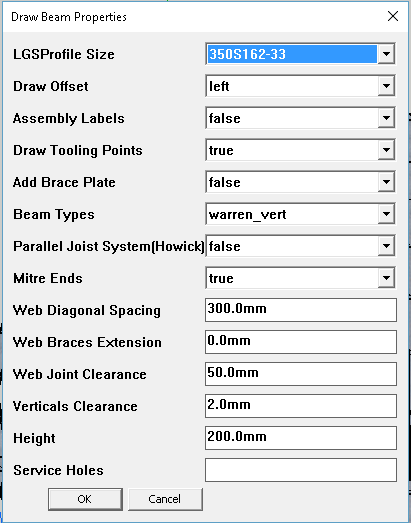

The properties menu will pop up, change settings according to specifications

Step 3

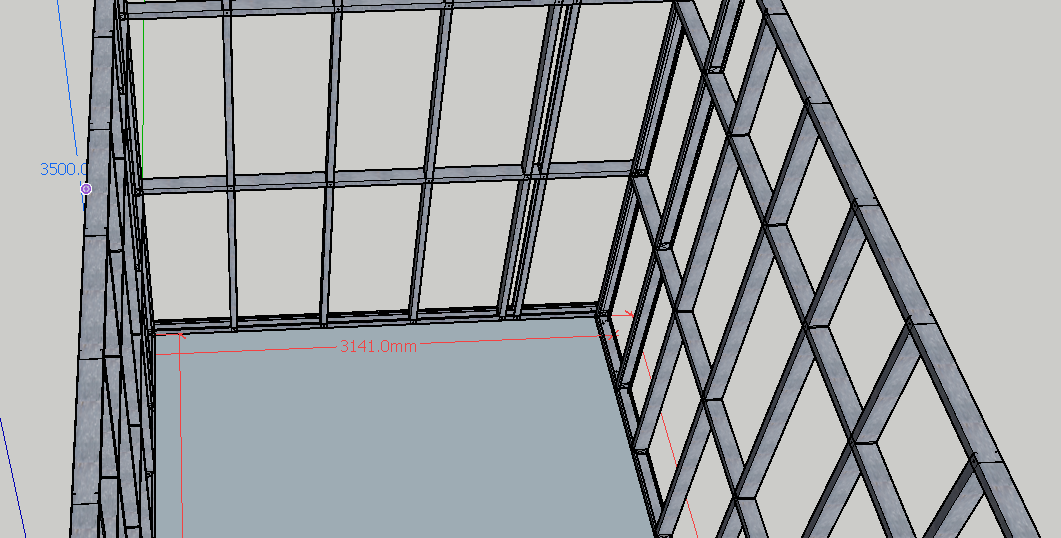

Click on the exact point which the beam should be placed

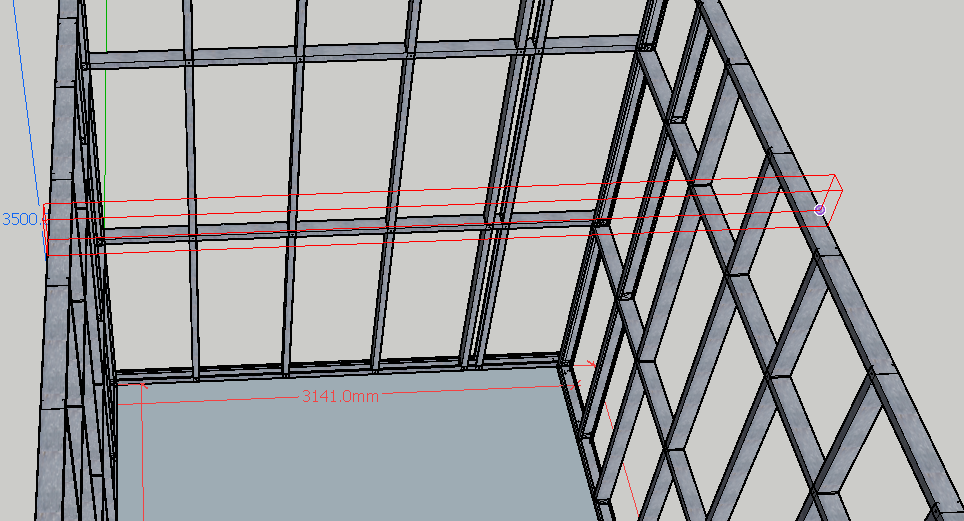

Then click to the next point

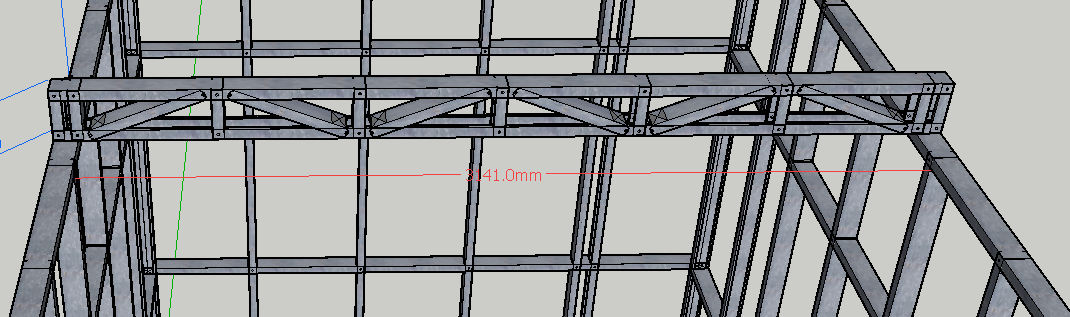

The beam will be drawn
